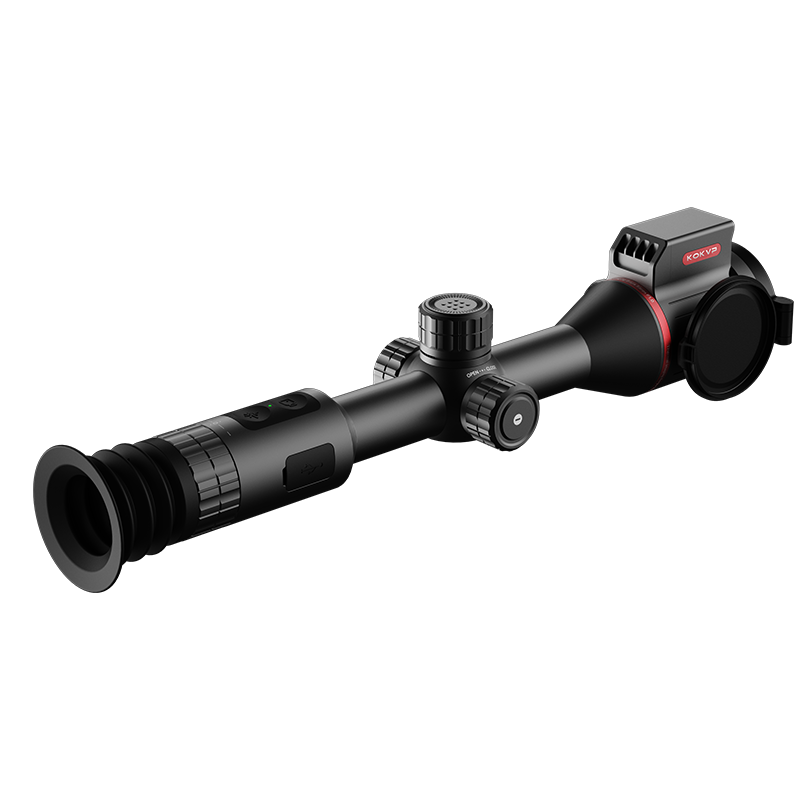

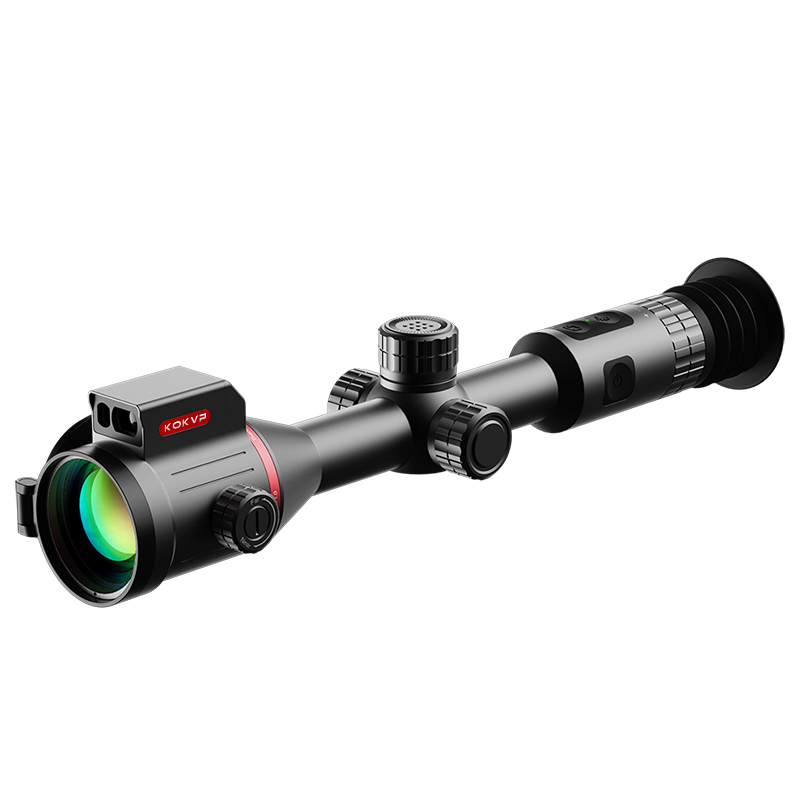

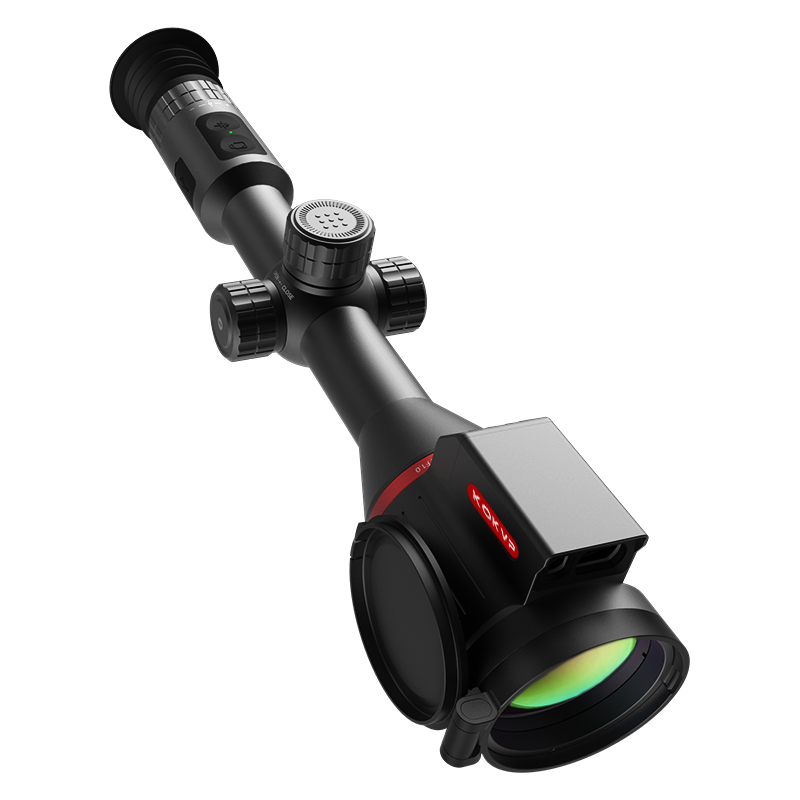

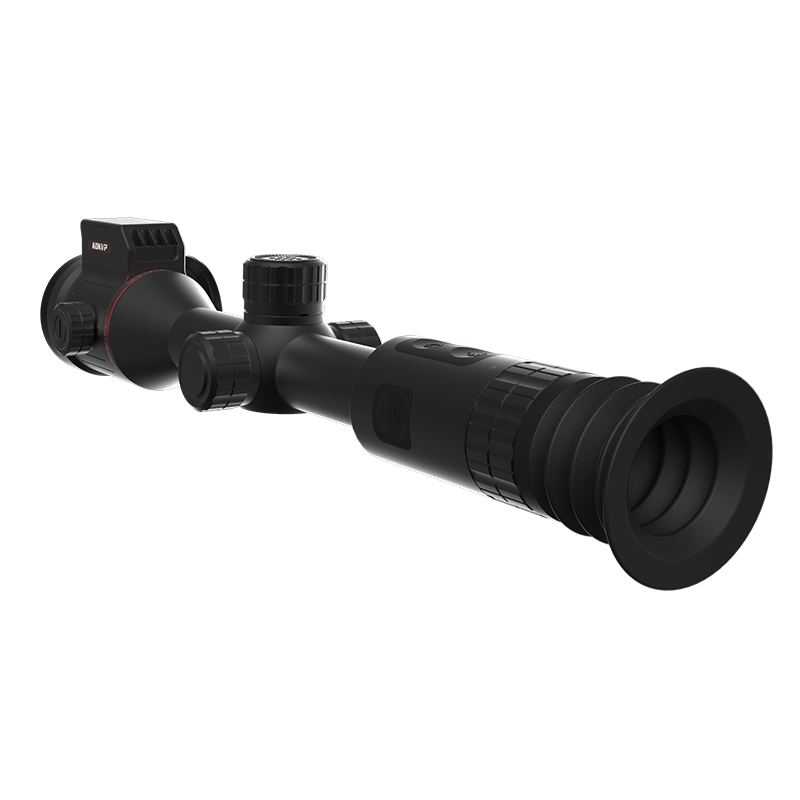

BH-ATG01 Laser Ranging Thermal Scope with Ballistics Calculation
$1,099.99
Thermal Imaging Riflescope
640*512 resolution • 12‑micron Vanadium Oxide Detector, NETD≤30mK
50Hz real‑time image • 1200m accurate laser ranging • WIFI real‑time image transmission
Product Manual
Download the official user manual for detailed operation instructions and technical guidance.
📄Download User Manual (PDF)Product Advantages
- Purpose‑built for demanding outdoor hunting missions, delivering reliable thermal imaging, precise laser ranging and ballistic calculation for target detection and accurate aiming in wilderness.
- Equipped with multiple image modes and electronic zoom, offering adaptable visual effects to identify targets in woodland, shrubland and open terrain under poor visibility.
- High‑definition display brings sharp thermal images, enabling operators to quickly acquire ranging data and target information during fast field observation.
- Simplified button layout and intuitive operating logic, supporting one‑handed operation even in complex outdoor environments to improve reaction speed.
- Compact lightweight structure with standard Picatinny rail, supporting convenient installation. IP66 rugged protection ensures stable performance during long outdoor hunting trips.
Product Parameters
| Resolution | 640×512 |
| Frame Rate | 50Hz |
| Objective Lens | 50mm F1.0 |
| Field of View | 8.8°×7° |
| Recognition Distance (Human) | 1700m |
| Recognition Distance (Vehicle) | 3000m |
| Electronic Zoom | 1×, 2×, 4×, 8× |
| Ranging Performance | Ranging Range ≥1200m, Accuracy ≤1m |
| Focusing Method | Knob Focusing |
| Ballistic Calculation | Intelligent Ballistics / Custom Ballistics |
| Display Resolution | 1280×1024 |
| Diopter Adjustment | ‑5SD～+5SD |
| Exit Pupil Distance | ≥50mm |
| Exit Pupil Diameter | ≥5mm |
| Image Modes | White Hot / Black Hot / Red Hot / Green Hot / False Color |
| External Power Supply | USB Type‑C 5V |
| Video Output | IVDS Format |
| WIFI | 2.4GHz 802.11 b/g |
| Battery Life | ≥8h, 1 rechargeable 18650 battery |
| Physical Interface | Standard Picatinny Rail |
| Weight | ≤950g |
| Dimensions | ≤390×80×85mm |
| Shock | 1000g, 3ms |
| Operating Temperature | ‑20℃～+50℃ |
| Storage Temperature | ‑40℃～+70℃ |
| Protection Level | IP66 |
