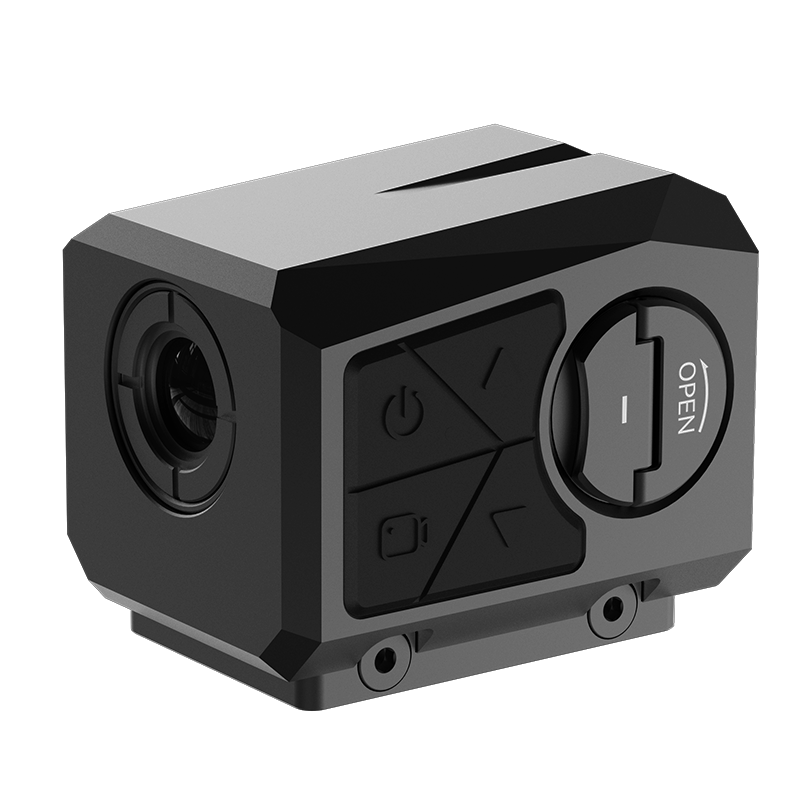

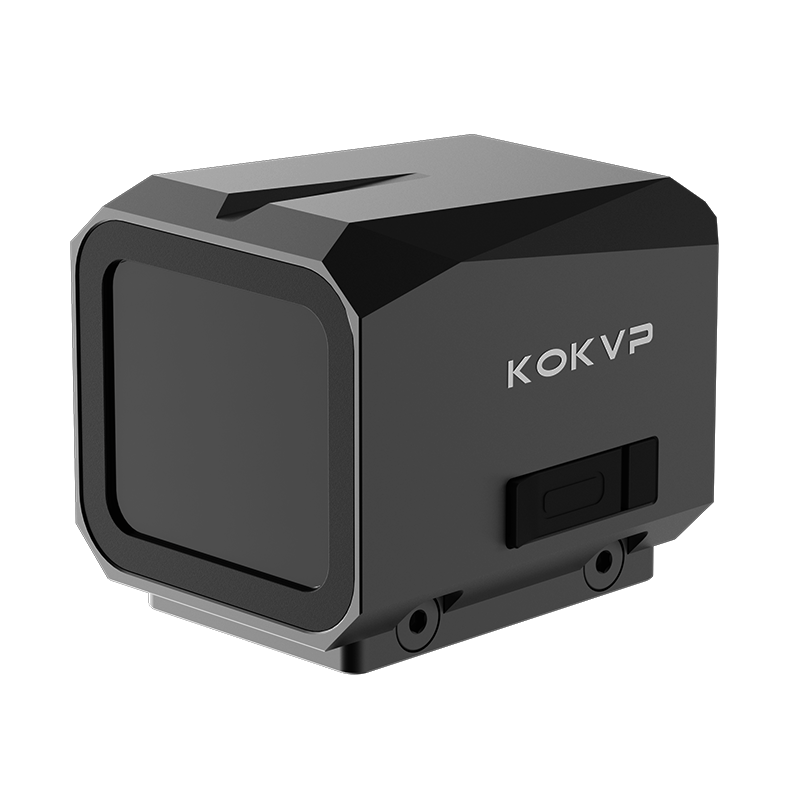

BH‑SQT01 Series Thermal Imaging Monocular with Laser Rangefinder
$1,099.99
Thermal Imaging Observation Scope
256×192 resolution • 12‑micron high‑sensitivity uncooled VOx detector
50Hz frame rate • Touch‑screen control • Photo & video recording • Reticle zeroing
Product Manual
Download the official user manual for detailed operation instructions and technical guidance.
📄Download User Manual (PDF)Product Advantages
- Compact lightweight thermal observation scope built for outdoor exploration, search‑and‑rescue and security patrol, delivering reliable thermal imaging in night and bad‑weather conditions.
- High‑sensitivity 12‑micron vanadium oxide detector produces sharp thermal imagery. Multiple image palettes help identify targets across woodland and complex field environments.

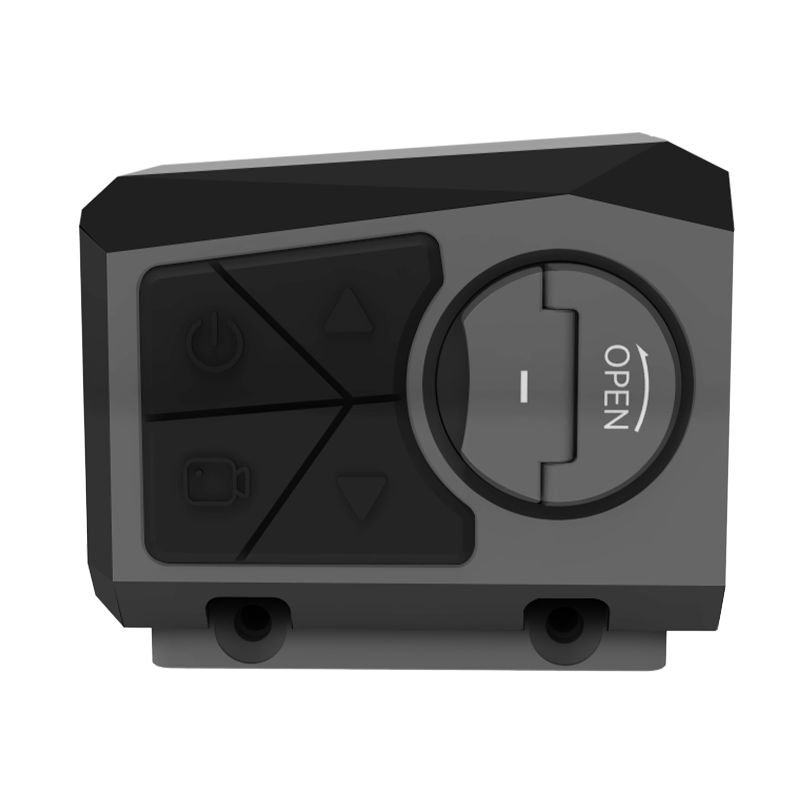

- Supports precise reticle zeroing calibration. Intuitive dual‑control design with physical buttons plus touch‑screen gestures simplifies quick adjustments during field observation.
- Built‑in photo capture and video recording functions, together with CVBS video output, support real‑time external display and field‑footage recording for later review.
- Tiny compact form factor, easy to mount or carry. IP66 environmental protection maintains stable performance over wide‑range operating temperatures for harsh outdoor use.
Product Parameters
| Resolution | 256×192, 12μm |
| Frame Rate | 50Hz |
| Field of View | 19.4°×14.6° |
| Focus Mode | Fixed‑focus |
| Electronic Zoom | 1×, 2× |
| Image Palettes | White Hot / Black Hot / Red Hot / Green Hot / Pseudo Color |
| Operation | Physical Buttons + Touch‑screen Control |
| Video Output | CVBS |
| Power Supply | USB Type‑C, 5V |
| Battery Life | ≥2h (15270 battery) |
| Weight | ≤200g |
| Dimensions | ≤52×41×44mm (Picatinny rail not included) |
| Operating Temperature | ‑20℃～+50℃ |
| Storage Temperature | ‑40℃～+70℃ |
| Protection Level | IP66 |
