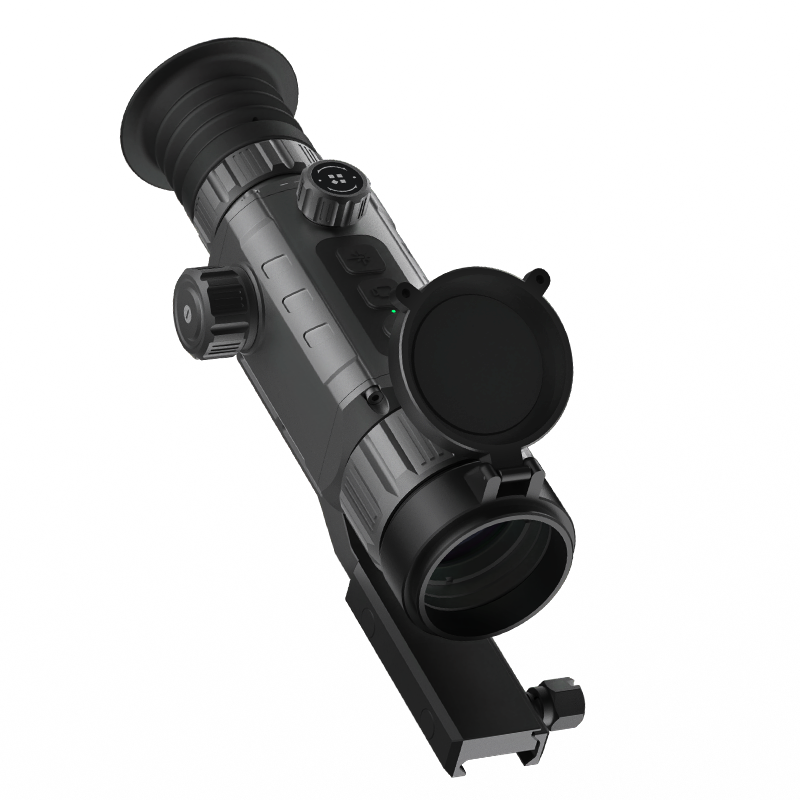

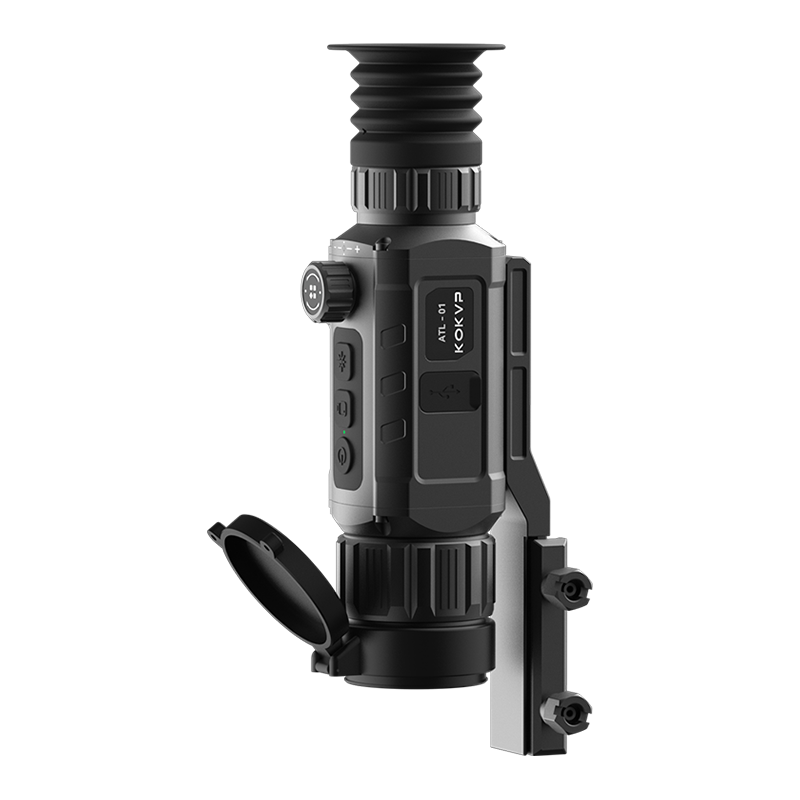

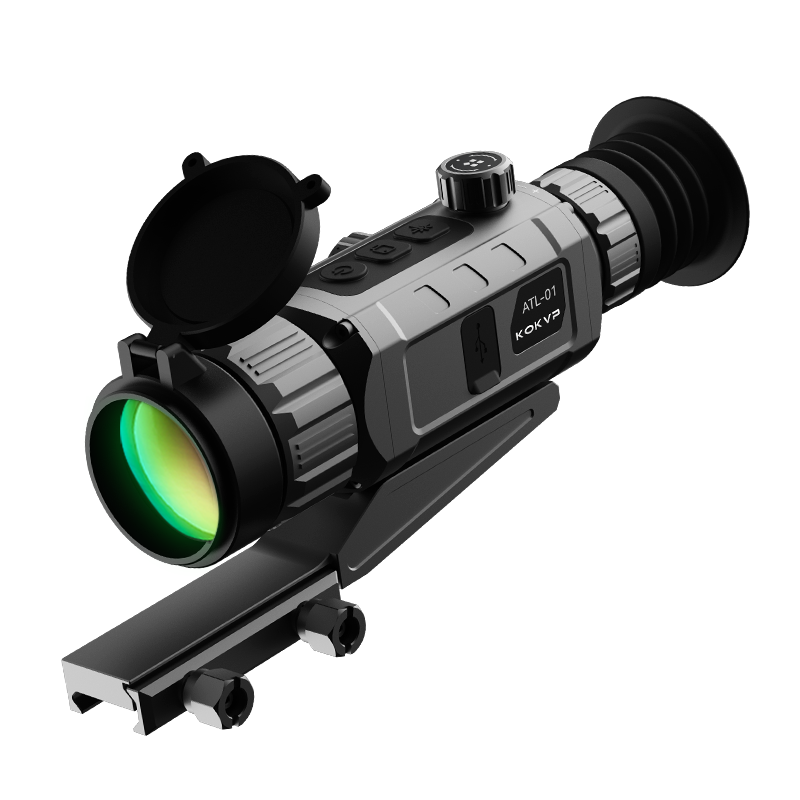

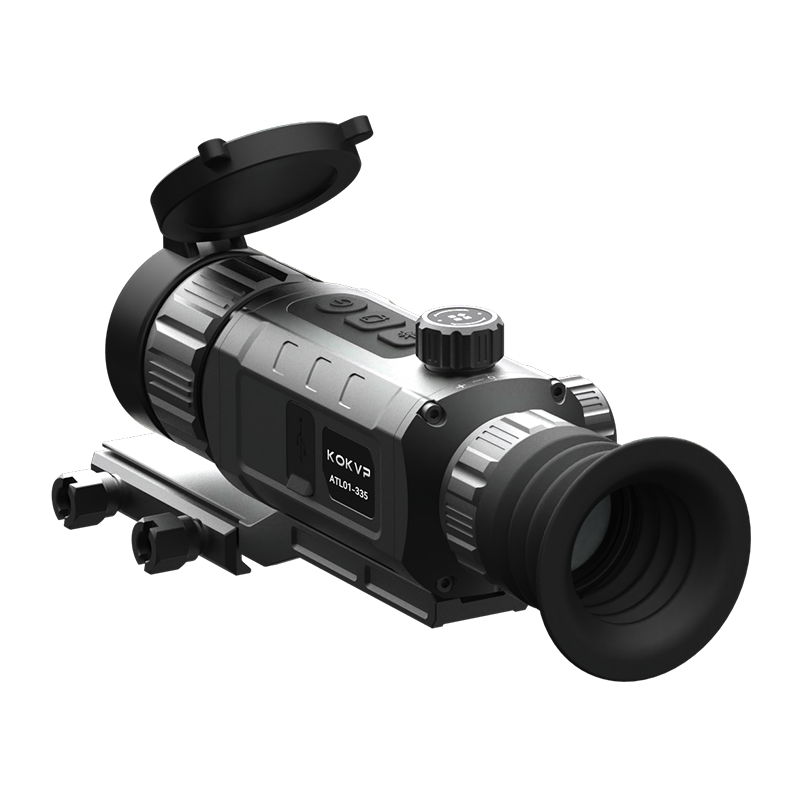

BH-ATL01 Thermal Imaging Scope with Electronic Compass & PiP Display
$1,099.99
Thermal Imaging Device
12‑micron high‑performance vanadium oxide detector, NETD≤20mK

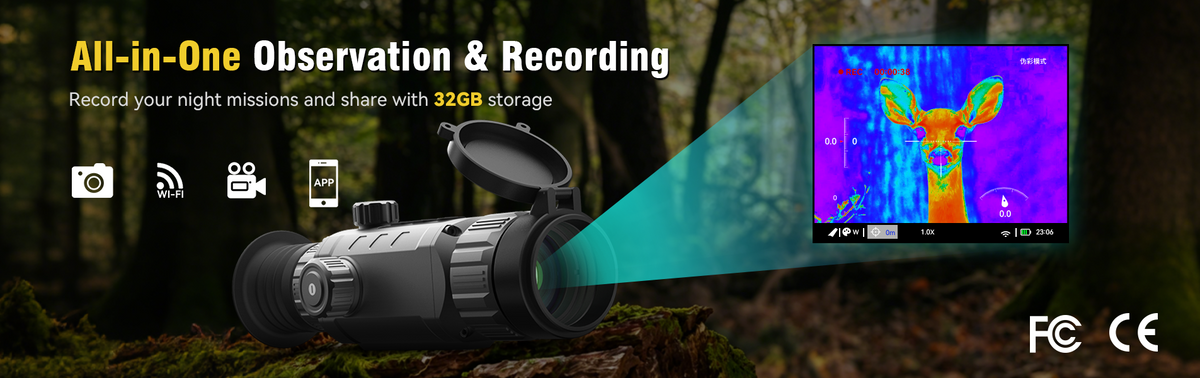

60Hz real‑time image display • 1024×768 high‑definition display • WIFI real‑time image transmission
Product Manual
Download the official user manual for detailed operation instructions and technical guidance.
📄Download User Manual (PDF)Product Advantages
- Professionally built for outdoor hunting scenarios, engineered to deliver stable, accurate ranging for wildlife observation and target positioning in the wild.
- Supports multiple ranging modes optimized for diverse terrain and targets, adapting to bushes, woodlands and open outdoor environments.
- High‑transmittance optics paired with clear eyepiece display, allowing users to capture ranging data rapidly during fast field observation.
- Streamlined button layout and straightforward operation logic. Simple to operate with one hand amid complicated outdoor surroundings.
- Ergonomic lightweight compact body design, easy to attach to gear or store in packs, perfect for long‑distance outdoor hunting trips.
Product Parameters
| Resolution | 640×512 |
| Frame Rate | 50Hz |
| Objective Lens | 50mm F1.0 |
| Field of View | 8.7°×7° |

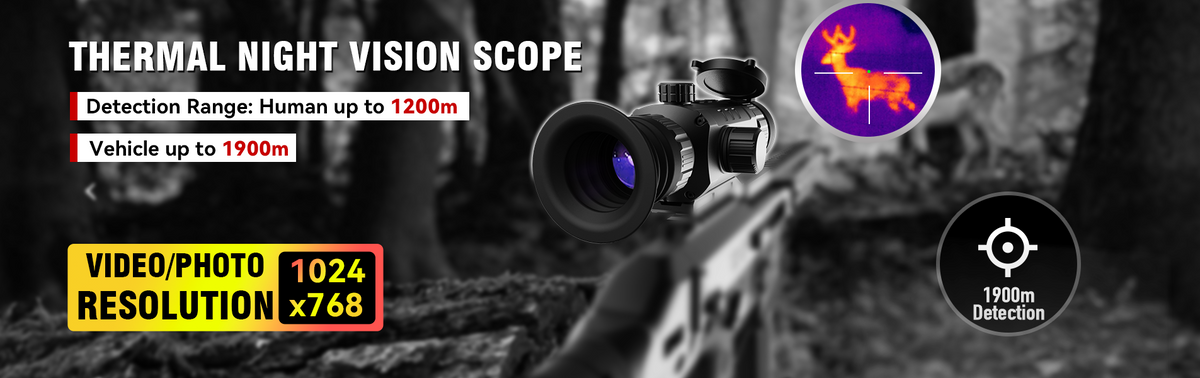

| Recognition Distance (Human) | 1200m |
| Recognition Distance (Vehicle) | 1600m |

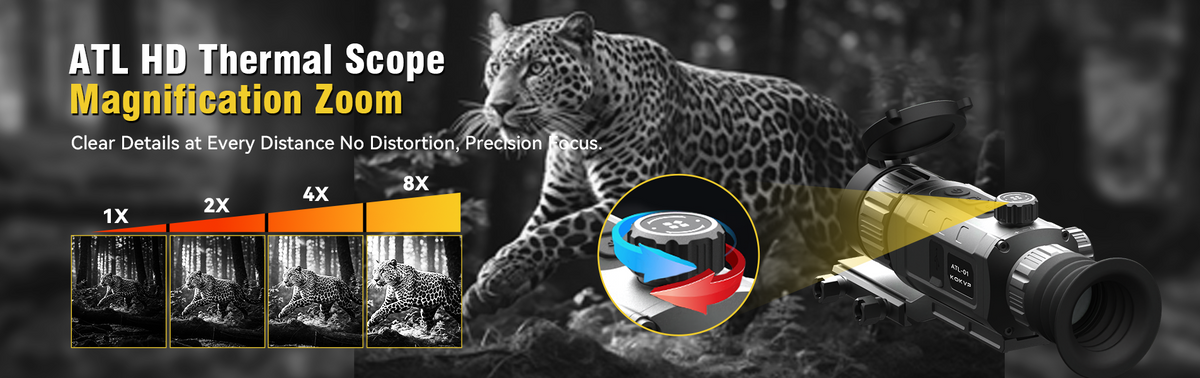

| Electronic Zoom | 1×, 2×, 4×, 8× |
| Focusing Method | Manual Handwheel Focus |
| Display Resolution | 1280×1024 |
| Diopter Adjustment | ‑5SD～+5SD |
| Image Adjustment | Contrast / Brightness Adjustment |

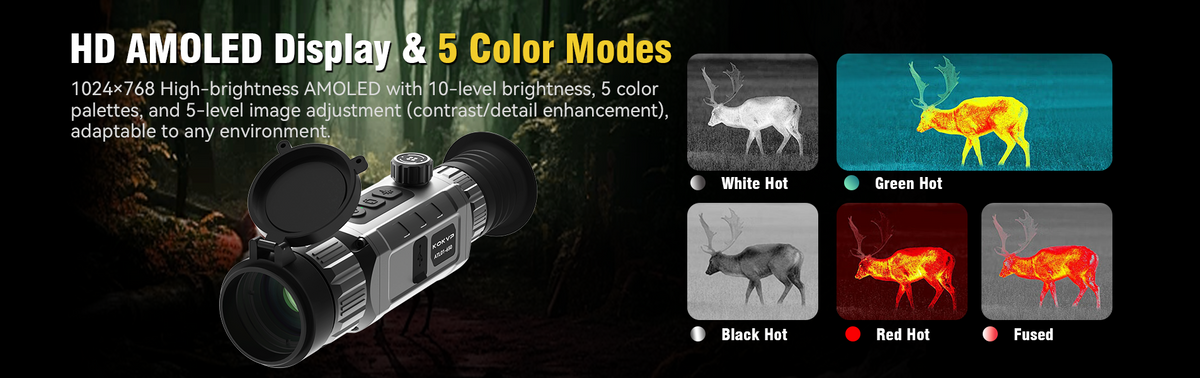

| Image Modes | White Hot (W) / Green Hot (G) / Black Hot (B) / Red Hot (R) / Fused(F) |
| External Power Supply | USB Type‑C 5V |
| WIFI | 2.4GHz 802.11b/g |

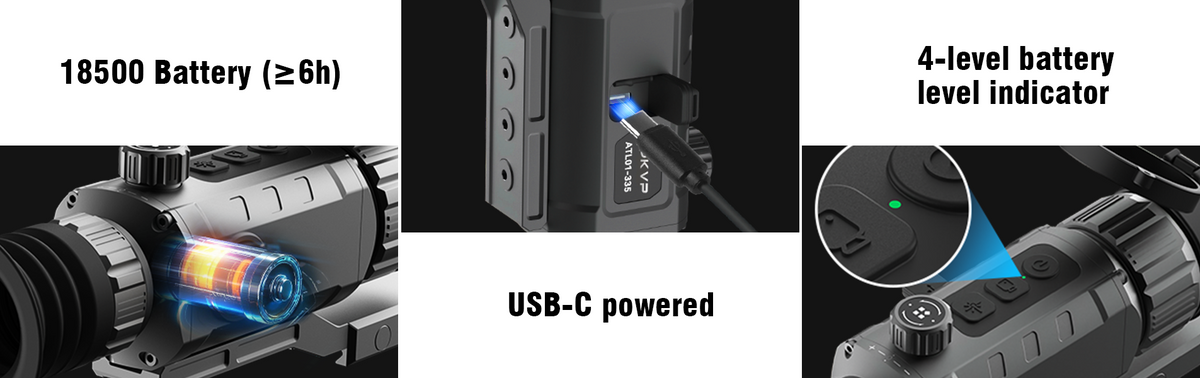

| Battery Life | ≥6h, 1× 18500 Rechargeable Battery |
| Physical Interface | Picatinny Rail |
| Weight | ≤550g |
| Dimensions | ≤220×74×71mm |
| Operating Temperature | ‑20℃～+50℃ |
| Storage Temperature | ‑40℃～+70℃ |
| Shock Resistance | 1000g, 3ms |
| Protection Level | IP66 |
